  • Oxford Street Name System

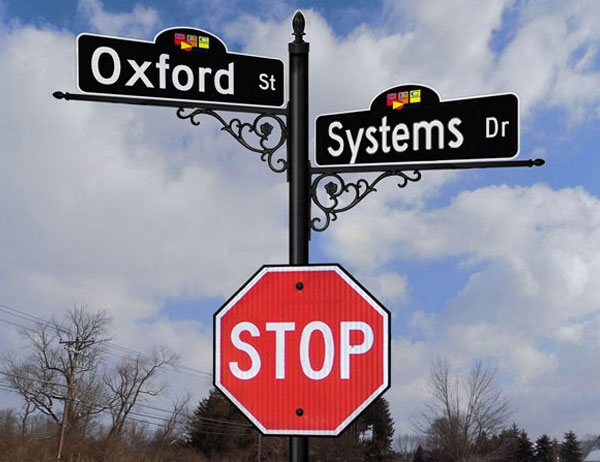

    The Oxford Street Name System is our original and most popular ornamental system. Utilize modular components including 3" posts, post bases, ornate welded cantilever wing brackets and finials to create a classic design. Powder coated semi-gloss black for an elegant look.
    Browse thru the Easy Order Checklist Steps below and/or download the pdf in Literature Downloads.

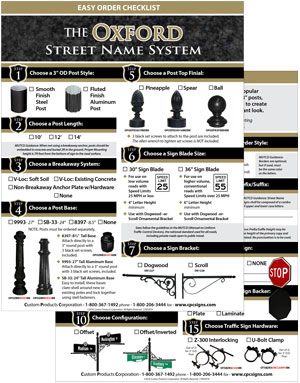

    Oxford Easy Order Checklist
    Oxford Easy Order Checklist view pdf
    CSNS Catalog

    Custom Street Name Catalog view pdf

    Choose a 3" OD Post Style:

    • Choose a Smooth or Fluted Finish Post..
    • Pre-painted Semi-Gloss Black.
    • NOTE: Posts must ship via truck-line.
    Smooth Finish Steel Post
    Smooth Finish
    Steel Post
    Fluted Finish Steel Post
    Fluted Finish
    Aluminum Post

    Choose a Post Length:

    • 10'
    • 12'
    • 14'
    MUTCD Guidance: When not using a breakaway anchor, posts should be embedded in concrete and buried 2ft in the ground. Proper Mounting height is 7ft foot from the bottom of sign to the road surface.

    Choose Standard or Special Ground Mount:

    • Choose Standard or Special Ground Mount Type from available options shown.
    Non-Breakaway Anchor Plate

    Standard
    Ground Mount

    • Non-Breakaway Anchor Plate
      w/Hardware
    vloc

    V-Loc Breakaway Ground Mount

    • New Concrete
    • Soft Soil
    • Existing Concrete
    Welded Plate Surface Mount

    Welded Plate Surface Mount

    • Non-Breakaway Welded Plate

    Choose a Post Base:

    • Choose No Post Base or one of the Bases shown.
    • Pre-painted Semi-Gloss Black.
    • NOTE: Posts must be ordered separately.
    9993 27" Aluminum Base

    9993:
    27" Tall
    Aluminum Base

    OPOZBR39993BK
    • Attach directly to a 3" round post with 3 black set screws, included.
    SB-33 24" Tall Aluminum Base

    SB-33:
    24" Tall
    Aluminum Base

    OPOZBR3SB33BK
    • Easy to install, this base clam-shells around new or existing poles and lock together using stell fasteners.
    9993 27" Aluminum Base

    8397:
    8½" Tall
    Steel Base

    OPOZBR38397ABK
    • Attach directly to a 3" round post with 3 black set screws, included.

    Choose a Post Top Finial:

    • Choose from Pineapple, Spear or Ball Designs.
    • Post Top Finials are powder painted Semi-Gloss Black to match post and brackets.
    • 3 black set screws to attach to the post are included.
    • The allen wrench to tighten set screws is NOT included.
    Pineapple Top Finial

    Pineapple

    OPOZFR3657MDBK
    Spear Top Finial

    Spear

    OPOZFR39516MDBK
    Ball Top Finial

    Ball

    OPOZFR3FINB3BK

    Choose a Sign Blade Size:

    Sizes follow the guidelines in the MUTCD (Manual on Uniform Traffic Control Devices), the national standard used for all roads, including private roads open to public travel.

    30" Sign Blade

    • For use on low volume roads with Speed Limits 25 MPH or less
    • 4" Letter Height minimum
    • Use with Dogwood -or- Scroll Ornamental Bracket

    36" Sign Blade

    • For use on higher volume,
      conventional roads with
      Speed Limits over 25 MPH
    • 6" Letter Height minimum
    • Use with Dogwood -or- Scroll Ornamental Bracket

    Choose a Sign Bracket:

    • Choose the Dogwood or Scroll Bracket
    • Powder painted Semi-Gloss Black to match posts & finials.
    • Black 1/4" x 1" torx head screws included to attach posts & signs.

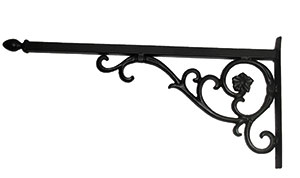

    Dogwood Bracket

    Dogwood Bracket

    OB1227

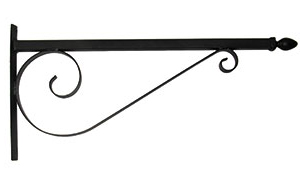

    Scroll Bracket

    Scroll Bracket

    OB1228

    NOTE: A bent lip sign style is required for use with a Sign Arm Bracket.

    Choose a Sign Style:

    • Standard

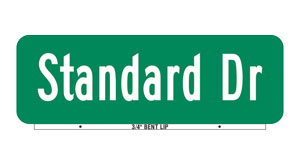

    Standard Bent Lip Sign



    NOTE: All Signs come standard with High Intensity Prismatic (HIP) sheeting
    and as a Flat, Double-Faced Sign Blade, unless otherwise requested.

    Deluxe (Routed)

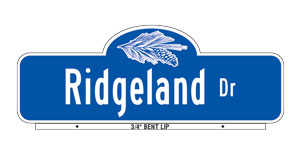

    Ridgeland Bent Lip Sign
    • Ridgeland

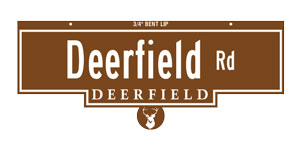

    Deerfield Bent Lip Sign
    • Deerfield

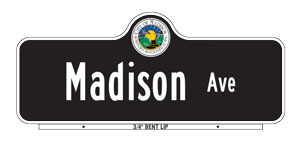

    Madison Bent Lip Sign
    • Madison

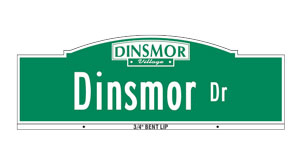

    Dinsmor Bent Lip Sign
    • Dinsmor

    Choose a Sign Color Scheme:

    White on Green Sign
    • White on Green
    White on Blue Sign
    • Black on White
    White on Brown Sign
    • White on Brown
    Black on White Sign
    • Black on White
    White on Black Sign
    • White on Black



    • Other/Custom
    MUTCD Guidance: Acceptable alternative background colors to Green are Blue, Brown or White. The legend shall be White, except for Black on White signs. Custom colors require adequate contrast.

    Choose Configuration:

    • Offset

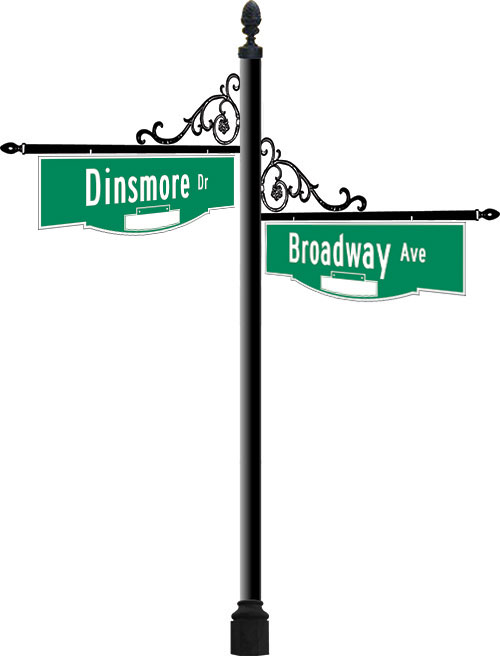

    Offset Configuration
    • Offset/Inverted

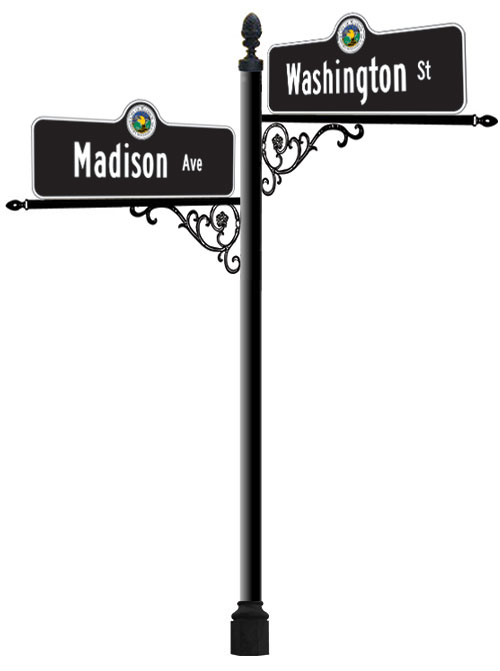

    Offset Inverted Configuration

    Choose Sign Border Style:

    Sgin Border None
    • No Border
    Sgin Border Edge
    • Edge Border
    Sgin Border Inset
    • Inset Border
    MUTCD Guidance: Borders are optional, but if used, must be the same color as the letters.

    Choose Font/Prefix/Suffix:

    Letter Font

    • Highway Gothic B
    • Custom Font
    MUTCD Guidance: Borders are optional, but if used, must be the same color as the letters.

    Prefix

    • Full Size
    • Half Size

    Suffix

    • Full Size
    • Half Size
    MUTCD Guidance: Prefix/Suffix Height may be smaller than the height of the primary copy and may be abbreviated. No punctuation is to be used.

    Choose Traffic Sign:

    Stop Sign
    • 30" Stop Sign
    Yield Sign
    • 36" Yield Sign
    Warning Sign
    • 30" Warning Sign
    • Other
    • NONE

    Choose Traffic Sign Backer:

    • NONE
    • Plate
    • Frame
    • Laminate

    Choose Traffic Sign Hardware:

    • U-Bolt Clamp
    U-Bolt Clamp
    OTSBZR3UBCLAMP3BK

    (Set of 2) for 3" O.D. Post
