    Brite Max Butterfly (Aluminum) Guardrail Delineators
      (Enlarge)

    Brite Max Butterfly (Aluminum) Guardrail Delineators

    Price: Select product options below, or call to order if no options available
    Quantity:
     Add to cart Checkout
    • Description
    • MUTCD Guidance
    • Literature

    Brite Max Butterfly (Aluminum) Guardrail Delineators

    The Aluminum body of Brite-Max Delineators provides long life in all climates and provide effective guidance at night, in low light and adverse weather conditions.
    • PRODUCT ID: BMGRD(XXX)(1/2)(XX)

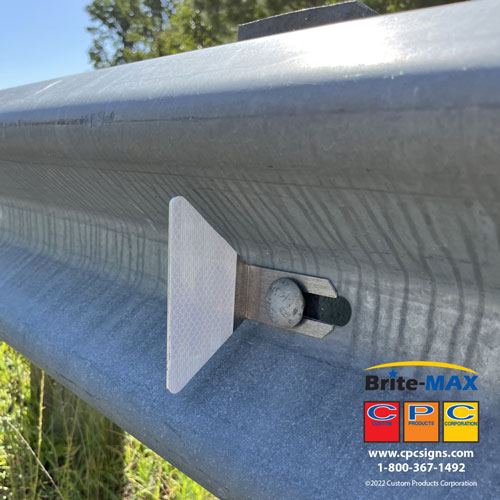

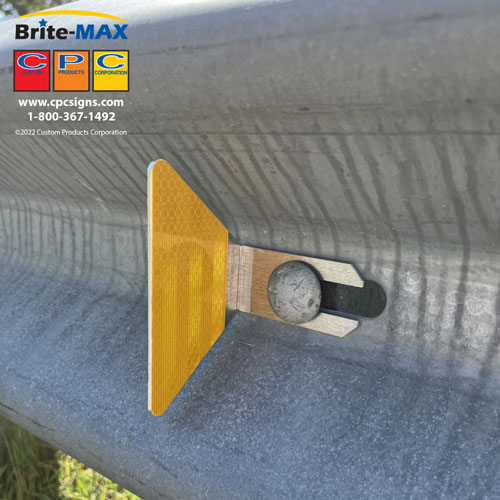

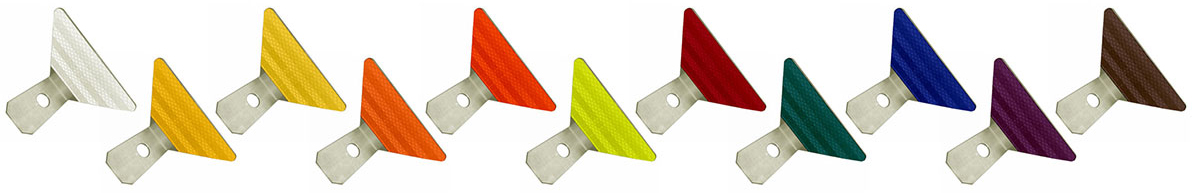

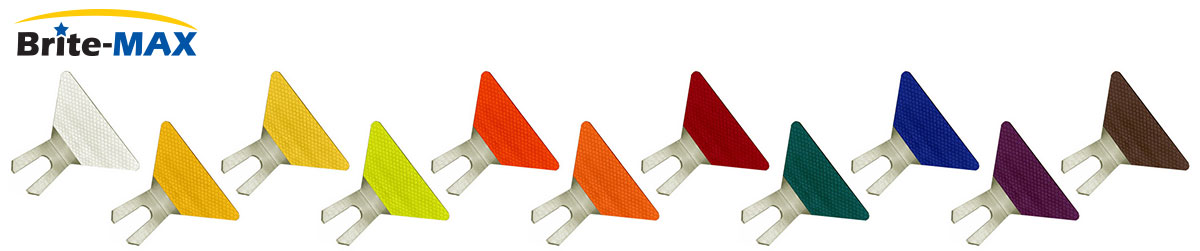

    • Installation Type (XXX): (567) Slot installs on existing guardrail bolt | (818) Hole installs on new guardrail
    • Reflective Sheeting (X): (H) High Intensity Prismatic | (3) DG3 Diamond Grade
    • Reflective Sides (1/2): (1) Single-Sided* | (2) Double-Sided

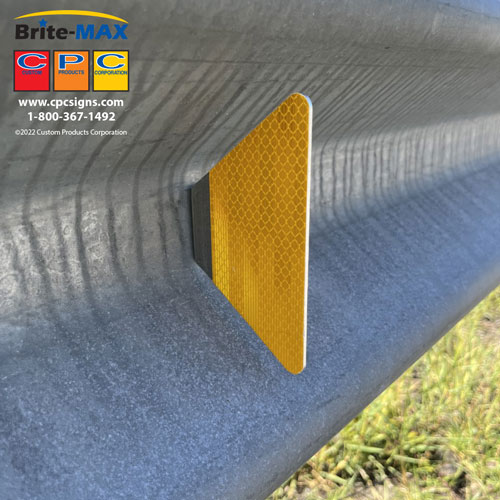

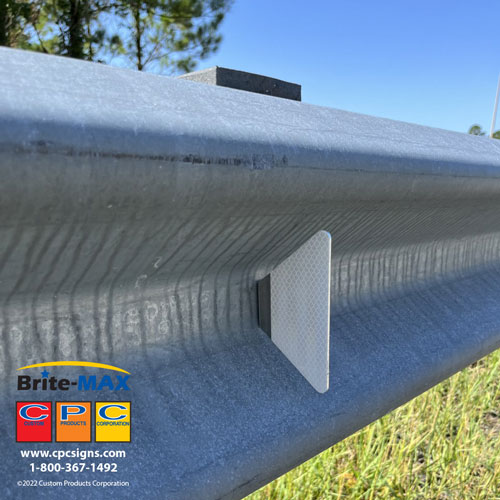

    • *NOTE: Industry Standard for Single-Sided Reflective placement on the side that bends towards the fork side as shown in images. Custom orders for non-standard single-sided reflective placement is available by custom order, call 1-800-367-1492.
    • Reflective Colors (XX): (WH) White | (YE) Yellow | (FYE) Fluorescent Yellow
    • Reflectivity: Provides 8.5" square inches of reflectivity.
    • Body Substrate: .080" Aluminum provides long life in all climates in both work zone and permanent installations.
    • Compatibility: Butterfly shape fits in the center channel for protection from accidental damage or vandalism.
    • Illuminate invisible guardrails at night with bright reflective markers that provide clear delineation.
    • MUTCD Guidance: Meets the minimum MUTCD requirements for reflectivity.
    Utilize Brite-Max Delineators for many other purposes such as utilities, incident management, parks and recreation areas. Standard reflective sheeting colors available by custom order. Call customer service at 1-800-367-1492 for details. Brite Max Guardrail Delineator Brite Max Guardrail Delineator

    About Delineators

    • Delineators are beneficial at locations such as at lane-reduction transitions and curves and provide effective guidance at night and during adverse weather conditions. Refer to the MUTCD for more information.
    • Retroreflective elements for delineators shall have a minimum dimension of 3 inches.
    • Delineators are considered guidance devices rather than warning devices.
    • Delineators may be used on long continuous sections of highway or through short stretches where there are changes in horizontal alignment.

    Color Definitions

    • WHITE: Lane markings or to mark the right pavement edge.
    • YELLOW: Separate traffic moving in opposite directions, or mark the left pavement edge on one-way roadways.
    • RED: Used to warn motorists of "Do Not Enter" or "Wrong Way". Also, delineators shall be red when used on a truck escape ramp.
    • BLUE: Used to mark the location of fire hydrants on the shoulder or at the curb.
    • GREEN: Used for snowplow markings.
    • ORANGE/FLUORESCENT ORANGE: Used in construction work zone areas.
