    3 Barricade Boards to Square Post Uprights Hardware Kit
      (Enlarge)

    3 Barricade Boards to Square Post Uprights Hardware Kit

    Price: $6.88
    Quantity:
     Add to cart Checkout
    • Description
    • About Barricades
    • About Barricade Stripes
    • Stripes Video
    • Literature

    Barricade Board to Square Post Upright Hardware Kit

    • PRODUCT ID: RSPB3ZBUZSPUH

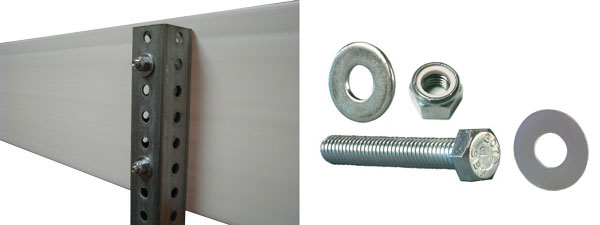

    • Everything you need to mount 3 barricade boards to 2 upright posts.
    • Kit includes 12 each: 5/16" steel washer, 5/16" nylon washer, 5/16" Hex Lock Nut and 5/16" x 3" Hex Head Bolt.
    • NOTE: Install nylon washers in front to keep the bolt head away from the sign face. Nylon washers are required with prismatic reflective sign sheetings to maintain applicable warranties.
    Hardware Kit

    A barricade is a portable or fixed device having from one to three rails with appropriate marking and is used to control road users by closing, restricting, or delineating all or a portion of the right-of-way. Refer to the MUTCD for more information.

    • Type 1 Barricades may be used on conventional roads or urban streets.
    • Type 2 Barricades should be used on freeways and expressways or other high-speed roadways.
    • Type 3 Barricades should be used to close or partially close a road.
    • Red/White Stripes: When barricades are used to warn road users of the end of a roadway, the stripes shall be red and white.
    • Sign Placement: Signs mounted on barricades and barricade/sign combinations shall be crashworthy.

    The MUTCD (Manual for Traffic Control Devices) specifies sizes and color combos for Barricade Boards and Vertical Panels. Refer to the MUTCD for more information.

    • 4" Stripes: boards/panels that are 8-12" x 24" and smaller shall have 4" Stripes
    • 6" Stripes: boards/panels that are 8-12" x 36" and larger shall have 6" Stripes
    • Red/White Stripes: STOP or Prohibition (Permanent)
    • Orange/White Stripes: indicate Temporary Traffic Control
    • NOTE: Barricade sheeting can NOT be rotated for use as both "left" and "right". There is a common misconception that "ALL" striped goods can be used for both "right" and "left" options by simply rotating them 180 degrees. Shown Below: Rotate the "right" object marker -or- barricade board and it remains a "right".
    Barricade Stripes

    Construction Work Zone Products Guide

    Construction Work Zone Products view pdf
