Color Matched Pedestrian and Crowd Control Boards
  (Enlarge)

Color Matched Pedestrian and Crowd Control Boards

Price:
 Checkout
« Previous | Next »
  • Description
  • About Barricades
  • About Barricade Stripes
  • Stripes Video
  • Literature

Call Customer Service at 1-800-367-1492 to order the products on this page.

Color Matched Custom Colored Barricade Boards

  • PRODUCT ID: RSPB3Z(XXX)SHM(S/D)(L/R)XX6
  • Barricade Length (XXX): (048) 48" (4 ft) | (072) 72" (6 ft) | (096) 96" (8 ft) | (120) 120" (10 ft) | (144) 144" (12 ft)
  • Reflective Sheeting: (H) High Intensity Prismatic
  • Sides (S/D): (S) Single Sided | (D) Double Sided
  • Stripe Direction (L/R): (L) Left | (R) Right or omit if (D) Double Sided which is Left on Side 1 and Right on Side 2
  • Stripe Colors: (XX) Custom Colors; view CPC Standard Color Chart view pdf
  • Barricade Dimensions: 1" thick x 8" wide by length of choice above.
  • Use barricade boards with multiple barricade leg options, sold separately.
  • Call customer service at 1-800-367-1492 to order custom stripe colors and configurations.

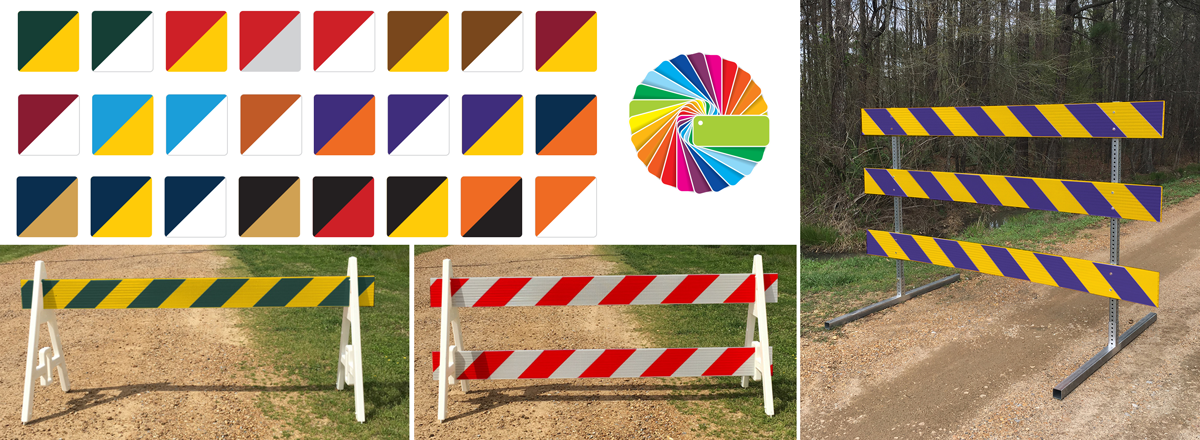

Examples of color combinations shown below.

Custom Color Barricade Boards

A barricade is a portable or fixed device having from one to three rails with appropriate marking and is used to control road users by closing, restricting, or delineating all or a portion of the right-of-way. Refer to the MUTCD for more information.

  • Type 1 Barricades may be used on conventional roads or urban streets.
  • Type 2 Barricades should be used on freeways and expressways or other high-speed roadways.
  • Type 3 Barricades should be used to close or partially close a road.
  • Red/White Stripes: When barricades are used to warn road users of the end of a roadway, the stripes shall be red and white.
  • Sign Placement: Signs mounted on barricades and barricade/sign combinations shall be crashworthy.

The MUTCD (Manual for Traffic Control Devices) specifies sizes and color combos for Barricade Boards and Vertical Panels. Refer to the MUTCD for more information.

  • 4" Stripes: boards/panels that are 8-12" x 24" and smaller shall have 4" Stripes
  • 6" Stripes: boards/panels that are 8-12" x 36" and larger shall have 6" Stripes
  • Red/White Stripes: STOP or Prohibition (Permanent)
  • Orange/White Stripes: indicate Temporary Traffic Control

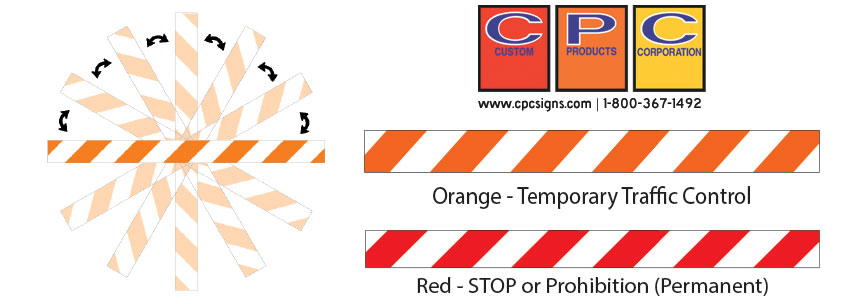

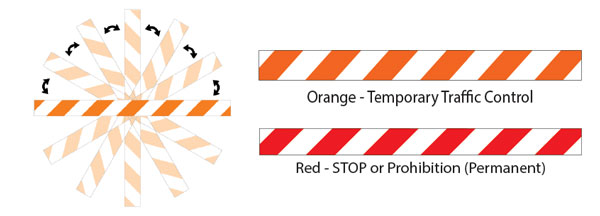

  • NOTE: Barricade sheeting can NOT be rotated for use as both "left" and "right". There is a common misconception that "ALL" striped goods can be used for both "right" and "left" options by simply rotating them 180 degrees. Shown Below: Rotate the "right" object marker -or- barricade board and it remains a "right".
Barricade Stripes

Construction Work Zone Products Guide

Construction Work Zone Products view pdf

CPC Standard Color Chart
CPC Standard Color Chart view pdf




Product Reviews

No Reviews For This Product.
