NOTE: The most popular markers are available online. To order other configurations, please call Customer Service at 1-800-367-1492.

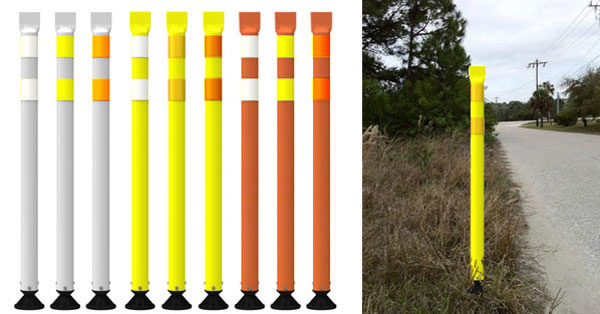

Premium Tubular Markers with Coupler for Drivable Base
Tubular Markers and Tube Delineators Easy Order Checklist view pdf
- PRODUCT ID: RPOFDSIMPT2(H)(C)(R)D
- Heights (H): (36) 36" | (48) 48"
- Body Colors (C): (WH) White | (YE) Yellow | (OR) Orange
- 2 Bands of Reflective HIP Sheeting (R): (2HWH) White | (2HYE) Yellow | (2HOR) Orange
- Specifications: Marker Tube is 2.375" OD (outside diameter) for use as a channelizing device. Short squeezed top keeps out weather and debris.
- Tubular Markers may be used effectively as opposing lane dividers of traffic, divide traffic when two or more lanes are kept open in the same direction, channelize traffic in exit only applications, for urban turn restrictions, for indicating changes of alignment in the roadway and to delineate edge of pavement drop off where space limitations do not allow the use of larger systems.
- Tubular Markers are ideal for use in parking garages, parking lots and special event facilities.
- Tubular Markers come standard with the Impact Recovery patented reactive spring system that allows the markers to withstand multiple impacts and return to their original position without any vertical listing.
- MASH 2009 tested & accepted for reimbursement on federally funded projects.
- Compatibility: This marker has a Coupler for use with a Drivable Base.
- Base is Sold Separately: Please note that the post has a coupler designated for only one type of base and is not interchangeable with other base styles. The matching base must be ordered for the post to affix to the base.
About Tubular Markers & Tube Delineators
Delineator: a retroreflective device mounted on the roadway surface or at the side of the roadway in a series to indicate the alignment of the roadway, especially at night or in adverse weather.
Tubular Markers may be effectively used for emphasis of pavement marking patterns including - opposing lane dividers of traffic - dividing traffic when two or more lanes are kept open in the same direction - channelizing traffic in exit only applications - urban turn restrictions - indicating changes of alignment in the roadway - delineating edge of pavement drop off where space limitations do not allow the use of larger systems.
- Shall be made of a material that can be struck without causing vehicle damage.
- Day and low speed roadways (40 MPH or less). Requirements: 18" minimum height with atleast (1) one 3" retro-reflective stripe.
- Night and high speed roadways (45 MPH or higher) Requirements: 28" minimum height with (2) two retro-reflective stripes that are between 2" - 3" wide.
- Channelizer Stripes shall begin 2" from the top and have 2" - 6" between stripes
Marker Tube Diameter shall be a minimum of 2" with 2" - 3" outside diameters being the most common.
- Tubular Markers shall have permanently affixed bases or have weighted portable bases.
Lane separators shall be crashworthy.
- In TTC work zones, Tubular Markers should only be used where space restrictions do not allow more visible devices.
Helpful Hint:
- White Reflective Sheeting separates same direction traffic flow or supplements right edge white lines.
- Yellow Reflective Sheeting separates opposite direction traffic flow or supplements left edge yellow lines.
