    Quick Release Tuff Curb Lane Separator & End Cap
    1 of 3 (Enlarge)

    Quick Release Tuff Curb Lane Separator & End Cap

    Price: Select product options below, or call to order if no options available
     Add to cart Checkout
    • Description
    • Video
    • Literature

    NOTE: The most popular markers are available online. To order other configurations, please call Customer Service at 1-800-367-1492.

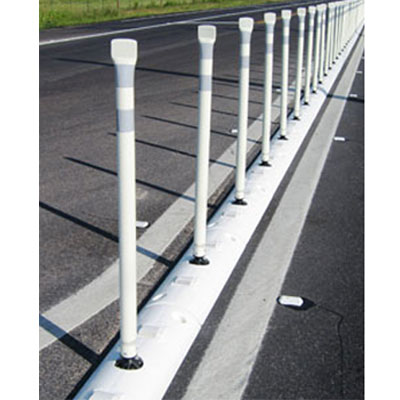

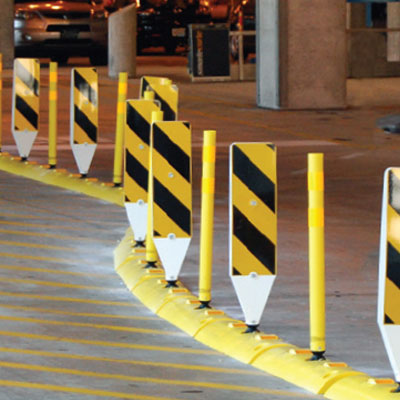

    Quick Release Tuff Curb Lane Separator

    • Body Colors (X): (WH) White | (YE) Yellow
    • Coupler: Quick-Release
    • Curb Size: 40" x 12" x 3.5"
    • Reflective Marker Options for White Body (R): (WN) White - 1-Way | (WW) White - 2-Way | (RW) Red/White 2-Way
    • Reflective Marker Options for Yellow Body (R): (YY) Yellow/Yellow - 2-Way
    • Highly visible and resistant to UV damage and fading.
    • Enhanced profile dimensional properties and 3M reflectors provide maximum visibility and traffic separation both day and night.
    • Quick Release Curb option equipped with "Quick Release" coupler which allows the upright to be removed from the base without the use of tools.
    • Ideal for use for curves, medians, edge lines, work zones, rail crossings, toll booths.
    • MASH 2009: Tested and federally accepted to 2009 MASH standards.
    • Compatibility: Tuff Curb system is a durable, high performance traffic separator curb compatible with the premium line of Quick Release Markers and Delineators.
    • Installation: Tuff Curb installation is only recommended with hardware and anchors - no adhesives. Hardware Included. Tuff Curb is lightweight and easy to install, with only two connection points to the pavement, resulting in reduced labor and enhanced installation times.
    • Installation Notes on the Challenge of Anchoring to Asphalt: Asphalt is gravel held together with oily pitch ("Bitumen"). Unlike concrete, asphalt will yield to forces applied for extended amount of time. For this reason, the common expansion anchors (which are used on concrete) can not be used for fastening to asphalt. Any expansion anchor installed in asphalt will loosen and fail within days.

    Tuff Curb End Cap

    Optional Tuff Curb End Cap used for smooth transitioning.
    • Body Colors (XX): (WH) White | (YE) Yellow
    • Curb End Cap Size: 18" x 12" x 3.5" max height / 2" min height

    Traffic Control & Roadway Safety Products view pdf
    Pavement Markings Guide
    Pavement Markings Guide view pdf
    Tubular Markers and Tube Delineators Easy Order Checklist
    Tubular Markers and Tube Delineators Easy Order Checklist view pdf
    Product Reviews

    No Reviews For This Product.
