Rhino Hydraulic HPD 60 Medium Duty Post Driver
  (Enlarge)

Rhino Hydraulic HPD 60 Medium Duty Post Driver

Price:
 Checkout
  • Description
  • Literature
Call Customer Service at 1-800-367-1492 to order the products on this page.

Rhino Hydraulic HPD 60 Medium-Duty Post Driver

  • PRODUCT ID: RPEDYHPD60378
  • Oil flow, gpm: 8 | Working psi: 1750 | Max. return psi: 220 | Blow frequency, bpm: 1380 | Blow energy, lb/ft: 70 | Vibration level (3 axis) m/s2: <9.6
  • Weight: Approx. 64 lbs. | Length (w/o Chuck): 24"
  • The Rhino HPD 60 is a high-performance hydraulic post driver is perfect for fencing, road signs, farm, ranch, forestry, vineyards, guardrail, anchors, tent stakes - essentially any driving job. Capable of driving nearly any post profile, this driver is a hydraulic powerhouse! For taller applications utilize the remote valve.
  • Unlike other hydraulic drivers the RHINO HPD 60 is nearly maintenance free. Continuous component lubrication keeps maintenance at a minimum and extends tool life.
  • The RHINO HPD 60 can be used with the HPP 13V or HPP 18V Power Packs as well as other hydraulic power systems such as utility truck or mini excavator with the use of Rhino's flow control devices.

Chucks, Chuck Adapters and Drive Caps

VIEW CHUCKS, CHUCK ADAPTERS & DRIVE CAPS
How to measure your post: Please note, chuck and chuck adapter sizes shown are actual inside dimensions of the opening. To select the proper adapter, measure the longest outside dimension of the post to be driven to confirm it will fit inside the opening. In the case of square or rectangular posts measure the longest diagonal from corner to corner.

3-7/8" Master Chuck-Lok for use with the HPD 60 Medium-Duty Post Driver

  • PRODUCT ID: RPEDZCH378 | 3-7/8" ID Master Chuck included w/RPEDYHPD60378, the HPD 60 Medium-Duty Post Driver

3-7/8" Master Chuck-Lok for use with the HPD 60 Medium-Duty Post Driver

  • PRODUCT ID: RPEDZCH378A10 | 1" ID Chuck Adapter for posts from 0" to 7/8". Best suited for driving electrical ground rod.
  • PRODUCT ID: RPEDZCH378A15 | 1-1/2" ID Chuck Adapter for posts 7/8" to 1-3/8"
  • PRODUCT ID: RPEDZCH378A20 | 2" ID Chuck Adapter for posts 1-3/8" to 1-7/8"
  • PRODUCT ID: RPEDZCH378A20H | 2" ID Heavy-Duty Chuck Adapter for posts from 1-3/8" to 1-7/8". Ideal for tent stake installation.
  • PRODUCT ID: RPEDZCH378A25 | 2-1/2" ID Chuck Adapter for posts 1-7/8" to 2-3/8"
  • PRODUCT ID: RPEDZCH378A30 | 3" ID Chuck Adapter for posts 2-3/8" to 2-7/8"
  • PRODUCT ID: RPEDZCH378A35 | 3-1/2" ID Chuck Adapter for posts 2-7/8" to 3-1/8"
  • PRODUCT ID: RPEDZCH378AC112 | 1-1.5# U-Channel Post Drive Chuck Adapter accommodates 1 to 1-1/2 lb. U-Channel Posts
  • PRODUCT ID: RPEDZCH378AC2 | 2 to 2-3/4" U-Channel Post Drive Chuck Adapter accommodates 2 to 2-3/4 lb. U-Channel Posts
  • PRODUCT ID: RPEDZCH378AC3 | 3-4# U-Channel Post Drive Chuck Adapter accommodates 3 to 4 lb. U-Channel Posts

Schedule 40 Pipe Drive Caps for use with the 3-7/8" ID Master Chuck

  • PRODUCT ID: RPEDZCH378AS40D2 | 2" Schedule 40 Pipe Drive Cap w/T-Bar & Clip
  • PRODUCT ID: RPEDZCH378AS40D25 | 2-1/2" Schedule 40 Pipe Drive Cap w/T-Bar & Clip
  • PRODUCT ID: RPEDZCH378AS40D3 | 3" Schedule 40 Pipe Drive Cap w/T-Bar & Clip

U-Channel Post Breakaway Anchor Driver for use with the 3-7/8" ID Master Chuck

  • PRODUCT ID: RPEDZCH378ACB | U-Channel Post Anchor Drive Chuck Adapter

Drive Cap for use with the U-Channel Post Breakaway Anchor Drive Chuck Adapter

  • PRODUCT ID: RPEDZCH378ACBD | U-Channel Drive Cap

Square Post Breakaway Anchor Drive Chuck Adapter & Puller for use with the 3-7/8" ID Master Chuck

  • PRODUCT ID: RPEDZCH378ASB | Square Post Drive Chuck Adapter

Drive Caps (Low Drive Extension) for use with the Square Post Breakaway Anchor Chuck Adapter

  • PRODUCT ID: RPEDZCH378ASBD125 | 1-1/4" Square Drive Cap (1" pin)
  • PRODUCT ID: RPEDZCH378ASBD15 | 1-1/2" Square Drive Cap (1-1/4" pin)
  • PRODUCT ID: RPEDZCH378ASBD175 | 1-3/4" Square Drive Cap (1-1/2" pin)
  • PRODUCT ID: RPEDZCH378ASBD2 | 2" Square Drive Cap (1-3/4" pin)
  • PRODUCT ID: RPEDZCH378ASBD225 | 2-1/4" Square Drive Cap (2" pin)
  • PRODUCT ID: RPEDZCH378ASBD25 | 2-1/2" Square Drive Cap (2-1/4" pin)


Power Packs, Accessories and Hydraulic Tools

VIEW POWER PACKS, ACCESSORIES & HYDRAULIC TOOLS

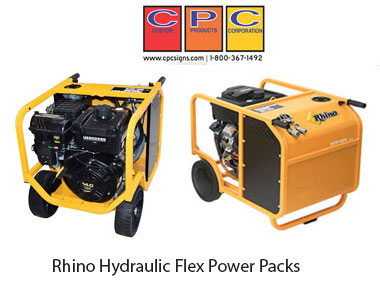

Rhino Hydraulic Flex Power Packs for the HPD-60 Medium-Duty Post Driver and are superior to other brands due to the cooling system that allows the hydraulic pressure to remain stronger than the competition once it gets hot.

  • PRODUCT ID: RPEDYZHPP13 | HPP 13V Hydraulic Flex Power Pack
  • PRODUCT ID: RPEDYZHPP18V | HPP 18V Hydraulic Flex Power Pack

Accessories for the HPD-60 Medium-Duty Post Driver

  • PRODUCT ID: RPEDYZHPPOFD | Hydraulic Oil Flow Divider allows tool to be powered with other sources such as a skid steer or mini excavator. (Includes 12" Hose Whip)
  • PRODUCT ID: RPEDYZHERV | Hydraulic Remote Valve (Includes 6" Hose Whip and 6' Hose)
  • PRODUCT ID: RPEDYZHEH20 | Hydraulic Extension Hose 20 ft
  • PRODUCT ID: RPEDYZHEH33 | Hydraulic Extension Hose 30 ft

Hydraulic Tools for use with the HPP 13V or HPP 18V Power Packs

  • PRODUCT ID: RPEDYHCS14 | 14" Hydraulic Cut Off Saw
  • PRODUCT ID: RPEDYHCS16 | 16" Hydraulic Cut Off Saw
  • PRODUCT ID: RPEDYHCS18 | 18" Hydraulic Cut Off Saw
  • PRODUCT ID: RPEDYHCS20 | 20" Hydraulic Cut Off Saw
  • PRODUCT ID: RPEDYHBR22 | HBR22 Hydraulic Chipping Hammer
  • PRODUCT ID: RPEDYHBR60106 | HBR60 Hydraulic Breaker with 1-1/4" x 6" -or- 1-1/8" x 6" Shank
  • PRODUCT ID: RPEDYHBR6011256 | HBR60 Hydraulic Breaker with 1-1/8" (1.125") x 6" Shank
  • PRODUCT ID: RPEDYHBR601256 | HBR60 Hydraulic Breaker with 1-1/4" (1.25") x 6" Shank
  • PRODUCT ID: RPEDYHCD14 | Hydraulic Hand Core Drill with 1" - 4" Drill Diameter
  • PRODUCT ID: RPEDYHCD214 | Hydraulic Hand Core Drill with 2" - 14" Drill Diameter
  • PRODUCT ID: RPEDYHED | HED Earth Auger
  • PRODUCT ID: RPEDYHWP2 | HWP2 Hydraulic Water Pump with 2" x 33' Discharge Hose
  • PRODUCT ID: RPEDYHWP4 | HWP4 Hydraulic Water Pump with 4" x 33' Discharge Hose

Posts, Brackets and Hardware Guide
Posts, Brackets & Hardware Guide view pdf


Product Reviews

No Reviews For This Product.
