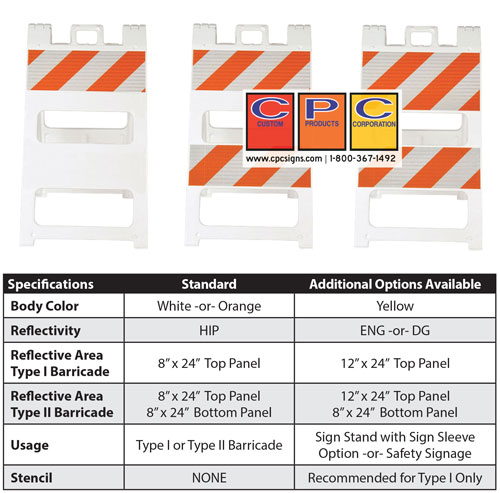

Type I and II Plasticade Barricades

  • PRODUCT ID: RSPB1PPPL(T)(XX)(R)(TPBP)
  • Barricade Type (T): (1) Type I | (2) Type II
  • Body Color (XX): (WH) White | (OR) Orange
  • Reflective Sheeting (R): (E) Engineer Grade | (H) High Intensity Prismatic | (D) Diamond Grade
  • Type I Panel Sizes (TPBP):
    (08)
    8" x 24" Reflective Top Panel
    (12) 12" x 24" Reflective Top Panel
  • Type II Panel Sizes (TPBP):
    (08)
    8" x 24" Reflective Top Panel | 8" x 24" Reflective Bottom Panel
    (12) 12" x 24" Reflective Top Panel | 8" x 24" Reflective Bottom Panel

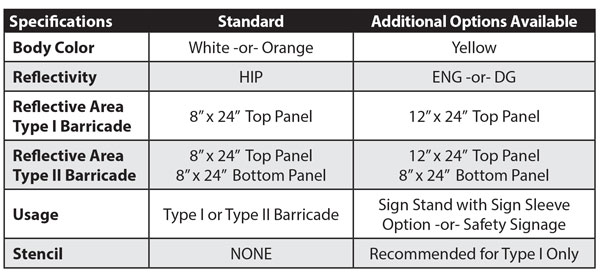

  • Barricade Reflective Panel Specifications:
    Reflective Sides: Double-Sided
    Stripe Colors: Orange/White
    Stripe Direction: Side 1 - Right Stripes | Side 2 - Left Stripes
  • Premium Plasticade Barricade withstands repeated impacts.
  • Ideal for public works projects.
  • Molded-in handles with mounting holes for attaching flashing lights.
  • "Click lock" hinges for a positive interlock in the open position.
  • Internal ballasting, up to 10 lbs. of sand
  • Sandbag bar (for additional weight)
  • Stacking lugs keep units from sliding when stacked.
  • MASH Passed/Meets MUTCD Standards.
  • Call customer service at 1-800-367-1492 to order stenciling, other strip colors and configurations.
Plasticade Type 1 and 2 Barricades

A barricade is a portable or fixed device having from one to three rails with appropriate marking and is used to control road users by closing, restricting, or delineating all or a portion of the right-of-way. Refer to the MUTCD for more information.

  • Type 1 Barricades may be used on conventional roads or urban streets.
  • Type 2 Barricades should be used on freeways and expressways or other high-speed roadways.
  • Type 3 Barricades should be used to close or partially close a road.
  • Red/White Stripes: When barricades are used to warn road users of the end of a roadway, the stripes shall be red and white.
  • Sign Placement: Signs mounted on barricades and barricade/sign combinations shall be crashworthy.

The MUTCD (Manual for Traffic Control Devices) specifies sizes and color combos for Barricade Boards and Vertical Panels. Refer to the MUTCD for more information.

  • 4" Stripes: boards/panels that are 8-12" x 24" and smaller shall have 4" Stripes
  • 6" Stripes: boards/panels that are 8-12" x 36" and larger shall have 6" Stripes
  • Red/White Stripes: STOP or Prohibition (Permanent)
  • Orange/White Stripes: indicate Temporary Traffic Control
  • NOTE: Barricade sheeting can NOT be rotated for use as both "left" and "right". There is a common misconception that "ALL" striped goods can be used for both "right" and "left" options by simply rotating them 180 degrees. Shown Below: Rotate the "right" object marker -or- barricade board and it remains a "right".
