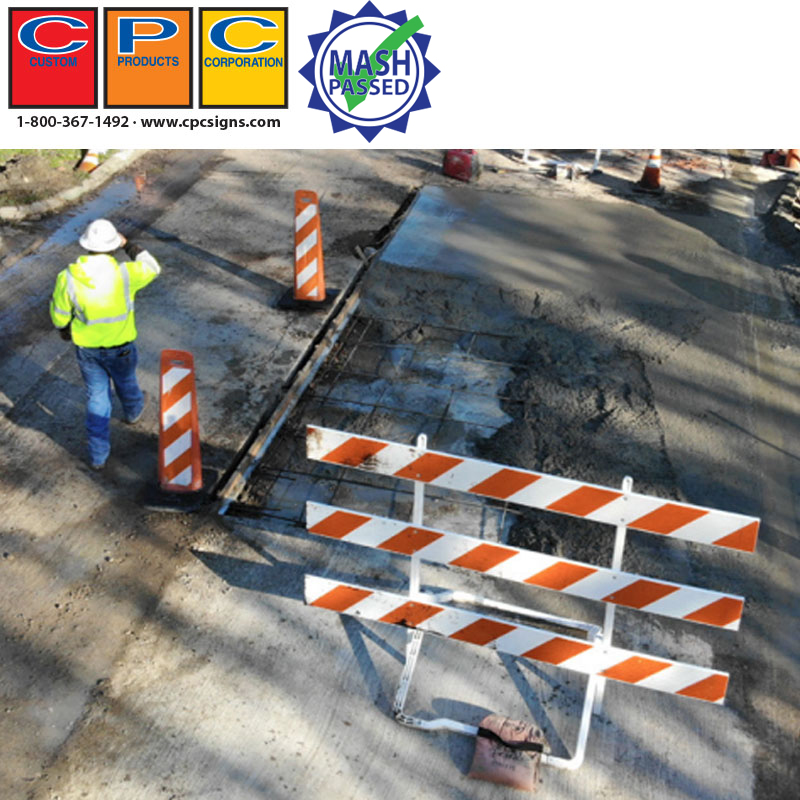

LaneGard Folding Type 3 Barricade
Buy the Mash Passed LaneGard 3® Folding Type III Barricade with its unique, one-piece design that folds for transport and storage, and unfolds for deployment.
-
PRODUCT ID: RSPBPSS3KLG(XXX)OH(L/R/D)
- Mash Passed Centerboard Lengths: (048) 48" | (072) 72" | (096) 96"
- Stripes:
(L) Left Striped-Single Faced
(R) Right Striped-Single Faced
(D) Left/Right Striped-Double Faced
- Weight: 17 lbs. assembled, without
centerboards.
- Frame Size: 46" x 48" x 64" tall when
deployed.
- Made from engineered plastic with
UV inhibitors.
- Molded through-holes recessed for
flush mounted hardware.
- Anti-Skid Feet, two per cross-bar.
- MASH Passed/Meets MUTCD Standards
- NOTE: Call customer service at 1-800-367-1492 for customized options.
A barricade is a portable or fixed device having from one to three rails with appropriate marking and is used to control road users by closing, restricting, or delineating all or a portion of the right-of-way. Refer to the MUTCD for more information.
-
Type 1 Barricades may be used on conventional roads or urban streets.
-
Type 2 Barricades should be used on freeways and expressways or other high-speed roadways.
-
Type 3 Barricades should be used to close or partially close a road.
-
Red/White Stripes: When barricades are used to warn road users of the end of a roadway, the stripes shall be red and white.
-
Sign Placement: Signs mounted on barricades and barricade/sign combinations shall be crashworthy.
The MUTCD (Manual for Traffic Control Devices) specifies sizes and color combos for Barricade Boards and Vertical Panels. Refer to the MUTCD for more information.
-
4" Stripes: boards/panels that are 8-12" x 24" and smaller shall have 4" Stripes
-
6" Stripes: boards/panels that are 8-12" x 36" and larger shall have 6" Stripes
-
Red/White Stripes: STOP or Prohibition (Permanent)
-
Orange/White Stripes: indicate Temporary Traffic Control
-
NOTE: Barricade sheeting can NOT be rotated for use as both "left" and "right". There is a common misconception that "ALL" striped goods can be used for both "right" and "left" options by simply rotating them 180 degrees. Shown Below: Rotate the "right" object marker -or- barricade board and it remains a "right".
