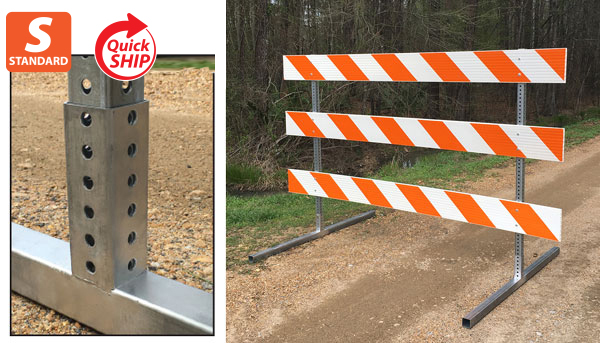

Type III: Telespar Breakaway System Kit #1 Welded Riser Design
  (Enlarge)

Type III: Telespar Breakaway System Kit #1 Welded Riser Design

Price: $148.50
Quantity:
 Add to cart Checkout
« Previous | Next »
  • Description
  • About Barricades
  • About Barricade Stripes
  • Stripes Video
  • Literature

Type III: Telespar Breakaway Kit #1 Welded Riser Design

  • PRODUCT ID: RSPB3ZBUS1
  • Kit #1 features a Welded Riser Design
  • Material: 14 gauge galvanized steel square post breakaway system
  • Post Size: 2" Feet & 1.75" Uprights
  • Kit #1 Includes:
    (2) Two - 5ft long Telespar® Feet with 6" Welded Risers
    (2) Two - 5ft long Telespar® Uprights
    (1) One - Hardware Kit - Board to Square Post Upright
  • Choose Barricade Boards (Sold Separately from Breakaway Kit)
  • Telespar Breakaway Kit #1 allows quick removal of uprights from feet or bases for short term or permanent placement.
  • Easy to assemble and replace parts, if necessary.
  • The Telespar® Square Posts shape provides superior wind load capabilities and inhibits warping. Galvanized, hot rolled high carbon steel. Pre-punched mounting 7/16” holes. Upright accepts a flashing barricade light.
  • Meets MUTCD Standards.
  • NOTE: Barricade Boards, Sold Separately.
Type III Barricades Telespar� Breakaway Kit #1

A barricade is a portable or fixed device having from one to three rails with appropriate marking and is used to control road users by closing, restricting, or delineating all or a portion of the right-of-way. Refer to the MUTCD for more information.

  • Type 1 Barricades may be used on conventional roads or urban streets.
  • Type 2 Barricades should be used on freeways and expressways or other high-speed roadways.
  • Type 3 Barricades should be used to close or partially close a road.
  • Red/White Stripes: When barricades are used to warn road users of the end of a roadway, the stripes shall be red and white.
  • Sign Placement: Signs mounted on barricades and barricade/sign combinations shall be crashworthy.

The MUTCD (Manual for Traffic Control Devices) specifies sizes and color combos for Barricade Boards and Vertical Panels. Refer to the MUTCD for more information.

  • 4" Stripes: boards/panels that are 8-12" x 24" and smaller shall have 4" Stripes
  • 6" Stripes: boards/panels that are 8-12" x 36" and larger shall have 6" Stripes
  • Red/White Stripes: STOP or Prohibition (Permanent)
  • Orange/White Stripes: indicate Temporary Traffic Control
  • NOTE: Barricade sheeting can NOT be rotated for use as both "left" and "right". There is a common misconception that "ALL" striped goods can be used for both "right" and "left" options by simply rotating them 180 degrees. Shown Below: Rotate the "right" object marker -or- barricade board and it remains a "right".
Barricade Stripes

Construction Work Zone Products Guide

Construction Work Zone Products view pdf
