    Brite Max BMJB15 (Aluminum) Barrier Mount Delineator
      (Enlarge)

    Brite Max BMJB15 (Aluminum) Barrier Mount Delineator

    Price: $0.00
    Quantity:
     Add to cart Checkout
    • Description
    • MUTCD Guidance
    • Literature

    Brite Max BMJB-15 Barrier Mount Delineator

    This Marker is Sold Individually. Price breaks start at 35 Markers and are reflected in the Shopping Cart.
    • PRODUCT ID: BMJB015(X)(XX)(S/D)
    • Reflective Sheeting (X):
      (H)
      High Intensity Prismatic
      (3) DG3 Diamond Grade

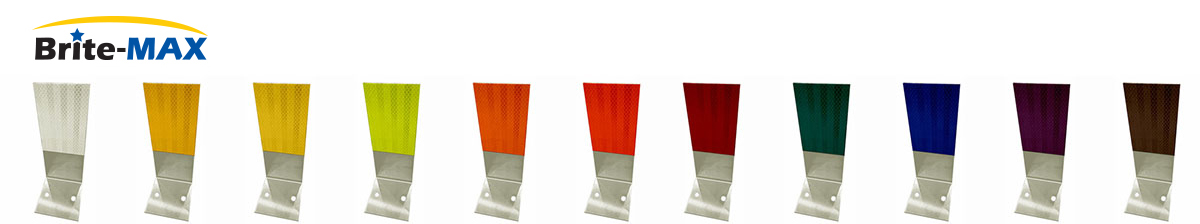

    • Reflective Colors (XX): (WH) White | (YE) Yellow | (FY) Fluorescent Yellow
    • Reflective Sides (S/D): (S) Single-Sided | (D) Double-Sided
    • Reflectivity: 3" x 5" sheeting provides 15" square inches of reflectivity
    • Tab Size: 3"
    • Body Substrate: .080" Aluminum provides long life in all climates in both work zone and permanent installations.
    • Compatibility: The Brite-Max BMJB-15 can be used for top or side mount applications.
    • MUTCD Guidance: Meets the minimum MUTCD requirements for reflectivity.
    Key features of Brite-Max Portable Concrete Barrier Markers:
    • BMJBs are becoming DOT approved nationwide in states which prefer durable aluminum over plastic!
    • Also known as a "Jersey" Barrier Marker.
    • Typical applications include temporary and permanent concrete barriers, concrete bridge parapets and wooden guardrail posts.
    • BMJB bases are pre-drilled for either adhesive or bolt mounting.
    • Installation: BMJBs have 3/8" holes pre-drilled for permanent 5/16" hardware installations. Use adhesives for a quick, reliable and less labor intensive installation. Standard pavement marking adhesives are available for purchase. Also, Dapco brand 795A Adhesive (RPMAEPOXYTUBE1P) is available through special order by calling customer service at 1-800-367-1492.
    Utilize Brite-Max Delineators for many other purposes such as utilities, incident management, parks and recreation areas. Standard reflective sheeting colors available by custom order. Call customer service at 1-800-367-1492 for details. Brite Max Barrier Mount Delineator

    About Delineators

    MUTCD CHAPTER 3F.01 Delineators

    Delineators are beneficial at locations such as at lane-reduction transitions and curves and provide effective guidance at night and during adverse weather conditions. Refer to the MUTCD for more information.

    • Retroreflective elements for delineators shall have a minimum dimension of 3 inches.
    • Delineators are considered guidance devices rather than warning devices.
    • Delineators may be used on long continuous sections of highway or through short stretches where there are changes in horizontal alignment.

    Color Definitions

    • WHITE: Lane markings or to mark the right pavement edge.
    • YELLOW: Separate traffic moving in opposite directions, or mark the left pavement edge on one-way roadways.
    • RED: Used to warn motorists of "Do Not Enter" or "Wrong Way". Also, delineators shall be red when used on a truck escape ramp.
    • BLUE: Used to mark the location of fire hydrants on the shoulder or at the curb.
    • GREEN: Used for snowplow markings.
    • ORANGE: Used in construction work zone areas.
