    Brite Max A Style BMGA04 (Aluminum) Barrier Mount Delineator

    Brite Max A Style BMGA04 (Aluminum) Barrier Mount Delineator

    Price: $0.00
     Add to cart Checkout
    • Description
    • MUTCD Guidance
    • Literature

    Brite Max BMGA04 A Style (Aluminum) Barrier Mount Delineator

    This Marker is Sold Individually.
    • PRODUCT ID: BMGA04(X)(XX)(S/D)
    • Reflective Sheeting (X):
      High Intensity Prismatic
      (3) DG3 Diamond Grade

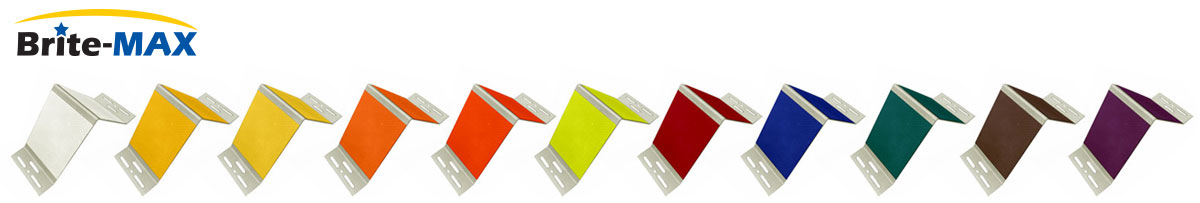

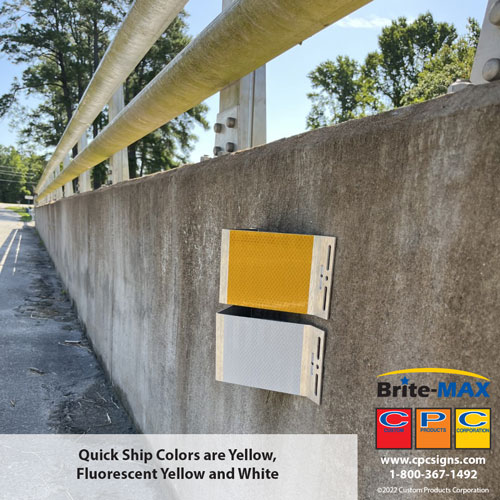

    • Reflective Colors (XX): (WH) White | (YE) Yellow | (FYE) Fluorescent Yellow
    • Reflective Sides (S/D): (S) Single-Sided | (D) Double-Sided
    • Reflectivity: 4" x 4.625" sheeting provides 18.5" square inches of reflectivity
    • Body Size: 10.375" long x 4" wide x 4" tall in the bent position.
    • Body Substrate: .080" Aluminum provides long life in all climates in both work zone and permanent installations.

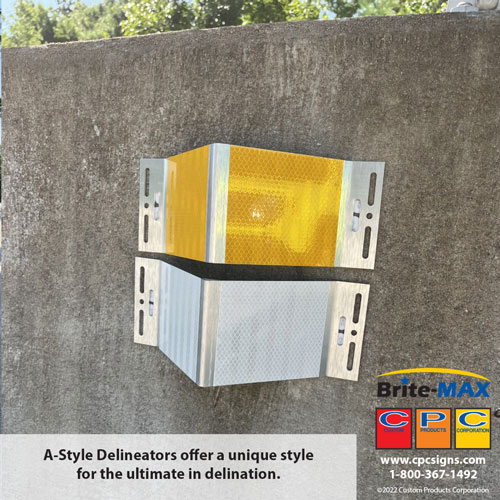

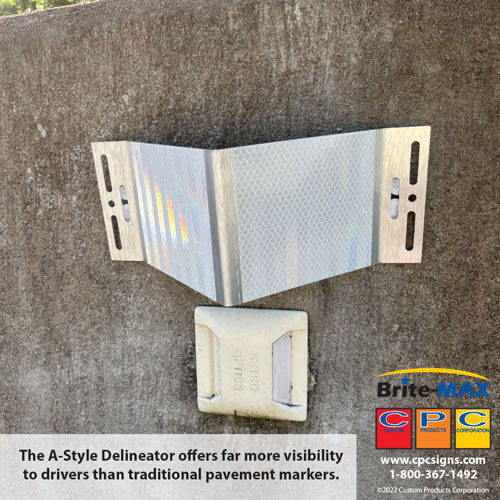

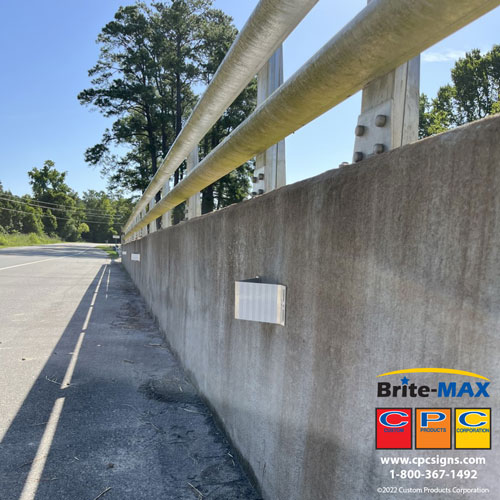

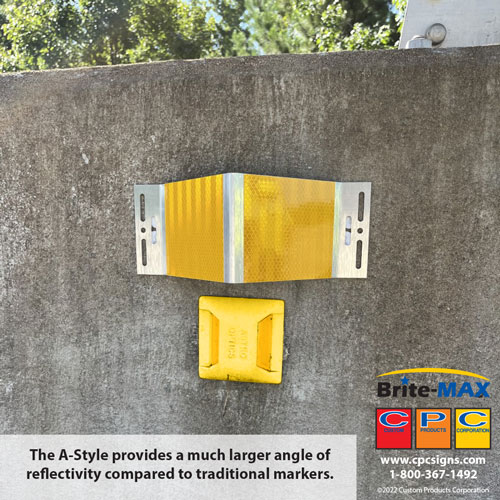

    • Compatibility: The Brite-Max A-Style BMGA04 Delineator is compatible with concrete barriers top side mounting only.
    • MUTCD Guidance: Meets the minimum MUTCD requirements for reflectivity.
    • Installation: Brite-Max A-Style Delineators have 4" x 1.25" mounting surfaces with (2) 1/4" diameter holes for fasteners and (6) 1/4" x 1 1/4" obround holes to assist with adhesion.
    Utilize Brite-Max Delineators for many other purposes such as utilities, incident management, parks and recreation areas. Standard reflective sheeting colors available by custom order. Call customer service at 1-800-367-1492 for details. Brite Max A Style Barrier Mount Delineator

    About Delineators

    MUTCD CHAPTER 3F.01 Delineators

    Delineators are beneficial at locations such as at lane-reduction transitions and curves and provide effective guidance at night and during adverse weather conditions. Refer to the MUTCD for more information.

    • Retroreflective elements for delineators shall have a minimum dimension of 3 inches.
    • Delineators are considered guidance devices rather than warning devices.
    • Delineators may be used on long continuous sections of highway or through short stretches where there are changes in horizontal alignment.

    Color Definitions

    • WHITE: Lane markings or to mark the right pavement edge.
    • YELLOW: Separate traffic moving in opposite directions, or mark the left pavement edge on one-way roadways.
    • RED: Used to warn motorists of "Do Not Enter" or "Wrong Way". Also, delineators shall be red when used on a truck escape ramp.
    • BLUE: Used to mark the location of fire hydrants on the shoulder or at the curb.
    • GREEN: Used for snowplow markings.
    • ORANGE: Used in construction work zone areas.
