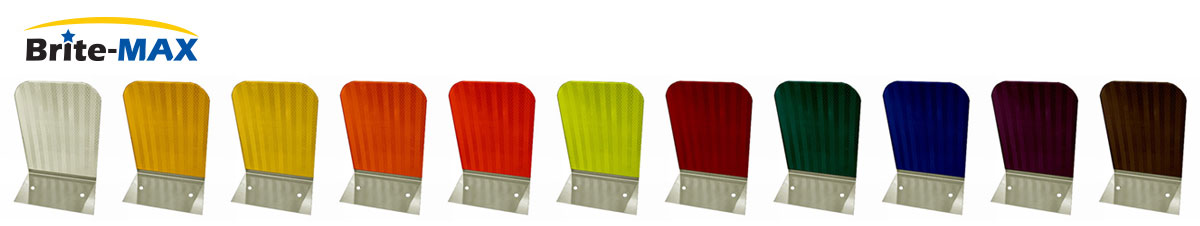

Brite Max BMJB-48 Barrier Mount Delineator
This Marker is Sold Individually. Price breaks start at 35 Markers and are reflected in the Shopping Cart.
Use the Brite Max BMJB-48 Barrier Mount Delineators on the tops or sides of barriers.
-
PRODUCT ID: BMJB048(X)(XX)(S/D)
- Reflective Sheeting (X):
(H) High Intensity Prismatic
(3) DG3 Diamond Grade
- Reflective Colors (XX): (WH) White | (YE) Yellow | (FY) Fluorescent Yellow
- Reflective Sides (S/D): (S) Single-Sided | (D) Double-Sided
- Reflectivity: 6" x 8" sheeting provides 48" square inches of reflectivity
- Tab Size: 3"
- Body Substrate: .080" Aluminum provides long life in all climates in both work zone and permanent installations.
- Compatibility: The Brite-Max BMJB-48 can be used for top or side mount applications.
-
MUTCD Guidance: Meets the minimum MUTCD requirements for reflectivity.
Key features of Brite-Max Portable Concrete Barrier Markers:
- BMJBs are becoming DOT approved nationwide in states which prefer durable aluminum over plastic!
- Also known as a "Jersey" Barrier Marker.
- Typical applications include temporary and permanent concrete barriers, concrete bridge parapets and wooden guardrail posts.
- BMJB bases are pre-drilled for either adhesive or bolt mounting.
- Installation: BMJBs have 3/8" holes pre-drilled for permanent 5/16" hardware installations. Use adhesives for a quick, reliable and less labor intensive installation.
Standard pavement marking adhesives are available for purchase. Also, Dapco brand 795A Adhesive (RPMAEPOXYTUBE1P) is available through special order by calling customer service at 1-800-367-1492.
Utilize Brite-Max Delineators for many other purposes such as utilities, incident management, parks and recreation areas. Standard reflective sheeting colors available by custom order. Call customer service at 1-800-367-1492 for details.
About Delineators
MUTCD CHAPTER 3F.01 Delineators
Delineators are beneficial at locations such as at lane-reduction transitions and curves and provide effective guidance at night and during adverse weather conditions. Refer to the MUTCD for more information.
-
Retroreflective elements for delineators shall have a minimum dimension of 3 inches.
-
Delineators are considered guidance devices rather than warning devices.
-
Delineators may be used on long continuous sections of highway or through short stretches where there are changes in horizontal alignment.
Color Definitions
-
WHITE: Lane markings or to mark the right pavement edge.
-
YELLOW: Separate traffic moving in opposite directions, or mark the left pavement edge on one-way roadways.
-
RED: Used to warn motorists of "Do Not Enter" or "Wrong Way". Also, delineators shall be red when used on a truck escape ramp.
-
BLUE: Used to mark the location of fire hydrants on the shoulder or at the curb.
-
GREEN: Used for snowplow markings.
-
ORANGE: Used in construction work zone areas.
