Compact Wrap & Roll Signs with Ribs
  (Enlarge)

Compact Wrap & Roll Signs with Ribs

Price: $155.04
Quantity:
 Add to cart Checkout
« Previous | Next »
  • Description
  • About MDI Compact System
  • About Roll-Up Signs
  • Literature

Compact Wrap & Roll Signs with Ribs

Compact Wrap & Roll Signs are part of a Premium Space Saving System that come pre-installed with hinged, integrated cross bracing to work in conjunction with the MDI Compact Sign Stand-RPOTTCS23612DLK and a Carrying Case to hold one collapsed Sign and the Stand. The sign is already latched into the stand allowing deployment in mere seconds!

  • PRODUCT ID: RMS(XX)(LEGEND)(L/R)(D)CS(M)
  • Size (XX): (36) 36" | (48) 48"
  • Legends (LEGEND):
    (W34) Be Prepared To Stop
    (W221) Blasting Zone Ahead
    (W202AH) Detour Ahead
    (W207AAH) Flagger Ahead
    (W207) Flagger Ahead Symbol
    (W207BAH) Flagman Ahead
    (W42)(L/R)) (Left/Right) Lane Ends Merge Symbol
    (W205(L/R)(D)) (Left/Right) Lane Closed (Distance)
    (W211D) Litter Crew Ahead
    (W211B) Men Working
    (W211C) Mowers Ahead
    (W204AH) One Lane Road Ahead
    (W203) Road Closed (Distance)
    (W201(D)) Road Work (Distance)
    (W213AH) Road Machinery Ahead
    (SWC) Sheriff's Work Crew
    (W216AH) Survey Crew Ahead
    (W214TAH) Tree Work Ahead
    (W414) Trucks Entering Highway
    (W217AH) Utility Work Ahead
    (W211AAH) Workers Ahead
    (W218AH) Work Area Ahead
    (W211) Workers Symbol
  • Include Left or Right (L/R) or Distances (D) as required:
    500 ft (05) | 1000 ft (10) | 1500 ft (15) | 1/2 mile (5M) | 1 mile (1M) | Ahead (AH)
  • Sign Face Material (M):
    (D) Marathon Diamond Grade | (H) Super Brite High Intensity
  • Compatibility: Compact Sign are designed to work in conjunction with the MDI Compact Sign Stand as well as the Vehicle Hitch Mount.

The MDI Compact Sign is permanently mounted to a foldable crossbracing, which allows the sign to fold down and be stored as one unit with the sign stand. The crossbracing is equipped with a Single Trigger Release Mechanism for easy deployment and take down with just the push of a button. As part of the MDI Compact Sign System, the sign can be stored right in the stand, ready for immediate use.

  • Drop Ships directly from the manufacturer thru trusted and reliable business partnerships.
  • Many legends and sizes are in stock and available for quick drop shipment.

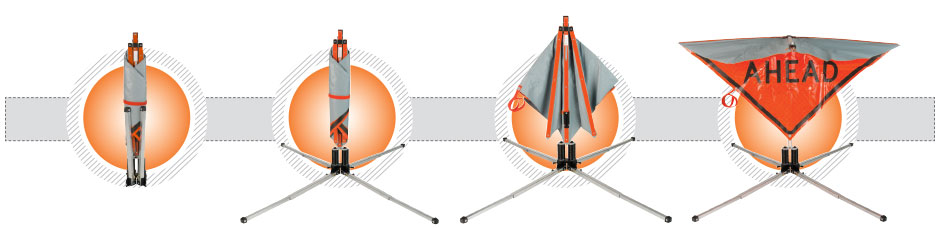

Quickest and Easiest deployment in the industry, sign stand and sign setup in less than 20 seconds.

stand deployment

About Roll-Up Signs

  • Work Zone Roll-up signs have orange backgrounds and are used as temporary signage in construction work zone areas, for utility work or emergency management situations.
  • Roll-up signs MUST be used on crashworthy sign stands in temporary traffic control zones.
  • Roll-Up Signs like Rigid Signs have above grade clearance guidelines. view graphic
  • Non-reflective signs are for daytime use only and non-compliant in some states.
  • All roll-up signs used at night MUST be retro-reflective.
  • Construction Work Zone Sign MUTCD Regulations view pdf
  • Refer to the MUTCD for more information.

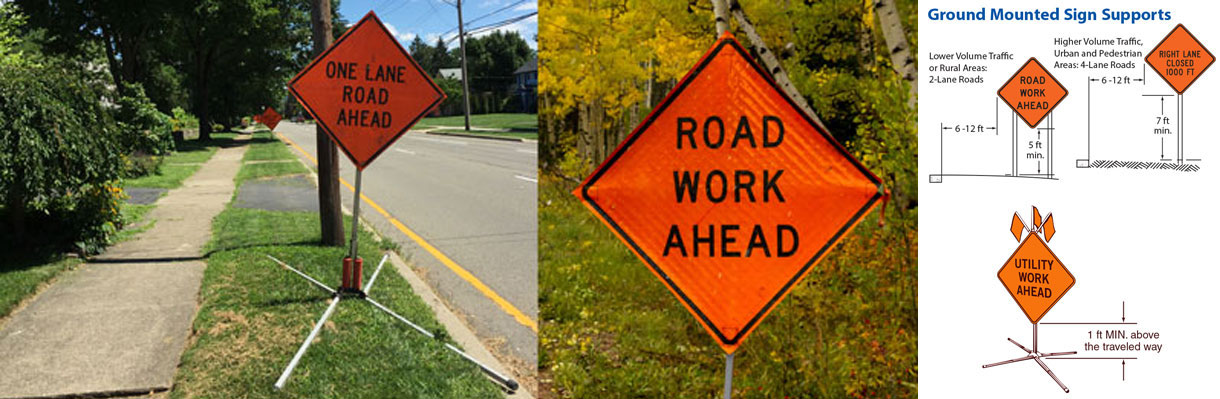

Ground Mounted Sign Supports

Construction Work Zone Products Guide

Construction Work Zone Products view pdf

Construction Work Zone MUTCD Regulations
MUTCD Regulations: Construction Work Zone view pdf
