The Original NW Quik Pull Post Puller | Manual Post Puller
The NW Quick Pull acts as a post puller, tree puller, shrub puller, and more!
- PRODUCT ID: RPEPQP
- The NW Quik Pull is a heavy duty stable portable mechanical post removal tool. This post puller offers the simplest and easiest way to pull out all kinds of items including a fence posts, sign posts, tent stakes, small trees, shrubs, and more.
- The NW Quik Pull is the best manual fence post puller on the market today.
- The NW Quik Pull post puller is 100% American made.
- The NW Quik Pull Post Puller is made by a small veteran and woman owned company. The NW Quik Pull Post Puller company works hard every day to deliver the best product on the market.
- The NW Quik Pull Post puller has an innovative tripod design with heavy duty construction. This post puller will get the job done.
- This post puller is the perfect tool for homeowners, landscapers, contractors, city workers, county workers, state workers, construction workers, even farmers.
- This post puller will pull a post and the embedded concrete plug.
- This post puller is slow and steady and not intended as a replacement for less expensive models.
- This post puller actually has more power than a truck mounted hydraulic model!
- This item drop ships directly from the manufacturer.
- NW Quik Pull Post Puller Package Shipping Dimensions: The Quik Pull ships individually in an 8" x 8" x 38" box and weighs 58lbs.
- Ordering in bulk? A pallet will hold a quantity of 25 post pullers, or a quantity of 10 post pullers.
Operation and Usage Guide for the NW Quik Pull
Here’s a step-by-step guide to assist you:
1. Preparation:
- Safety First: Before beginning, ensure you’re wearing appropriate personal protective equipment, such as gloves and safety glasses.
- Clear the Area: Remove any obstacles around the post or object you intend to pull to ensure a safe working environment.
2. Positioning the NW Quik Pull:

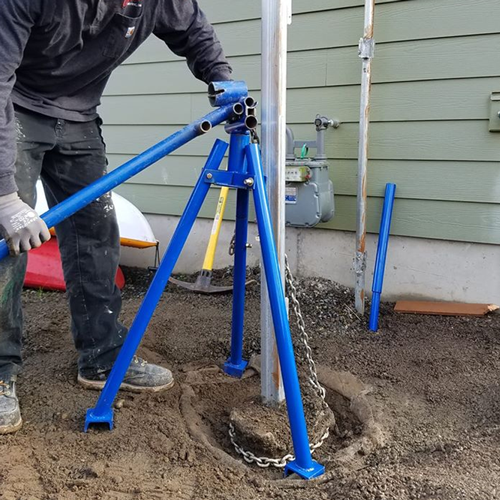

- Place the Tripod: Set the NW Quik Pull’s tripod base over the post or object, ensuring it’s centered and stable on the ground.
- Adjust for Stability: works on uneven ground and feet are away from object being pulled.
3. Attaching to the Post:

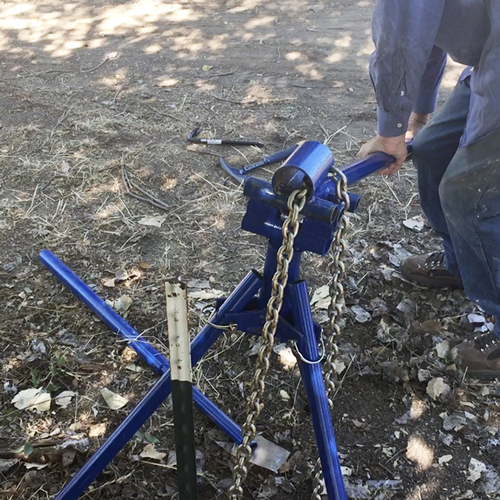

- Secure the Chain: Wrap the provided chain around the base of the post or object you’re removing.
- Connect to the Puller: Attach the chain to the lifting mechanism of the NW Quik Pull, ensuring it’s firmly secured.
4. Operating the Puller:
- Apply Leverage: Utilize the puller’s handle to engage the lifting mechanism. The NW Quik Pull’s design allows for efficient leverage, making the extraction process smooth.
- Monitor the Extraction: As you operate the puller, observe the post’s movement. Continue applying steady pressure until the post, along with any concrete footing, is fully removed.
5. Post-Removal:
- Release the Post: Once extracted, carefully lower the post to the ground.
- Inspect the Area: Fill any holes or depressions left by the removed post to maintain
ground safety and aesthetics.
Additional Tips:
- Dual Fulcrum Points on the Pulling Bar:
- Top Fulcrum Point: With a 225lb person, this setting exerts 10,000 lbs of pulling force.
- Secondary Fulcrum Point: Once the item being pulled loosens, switching to this setting provides a rating of 6,000 lbs with increased upward pulling travel.
- Versatility: The NW Quik Pull is not limited to fence posts, sign posts and concrete footings; it’s also effective for removing small trees, shrubs, bamboo, and tent stakes.
- Maintenance: After use, clean the tool to remove dirt and debris, and store it in a dry
place to ensure longevity.
For a visual demonstration of the NW Quik Pull in action, you can watch the following instructional video in the video Tab. The video provides a clear overview of the deployment and operation process, enhancing your understanding of the tool’s functionality.
The Ultimate Fence Post Puller
Give us one minute and we can show you just how easy and effective the NW Quik Pull is at pulling. There is no other removal tool on the market that has the stability and ease of use the NW Quik Pull offers. It doesn’t matter if you’re old or young, man or woman, the NW Quik Pull is easy to use for everyone. Save time and your back and order your NW Quik Pull today!
